Electro Portable Hydraulic Power Pack Unit For Foundation Construction Equipment Motor power 37 KW

Trung Quốc Electro Portable Hydraulic Power Pack Unit For Foundation Construction Equipment  Motor power 37 KW nhà cung cấp
Electro Portable Hydraulic Power Pack Unit For Foundation Construction Equipment  Motor power 37 KW nhà cung cấp Electro Portable Hydraulic Power Pack Unit For Foundation Construction Equipment  Motor power 37 KW nhà cung cấp Electro Portable Hydraulic Power Pack Unit For Foundation Construction Equipment  Motor power 37 KW nhà cung cấp

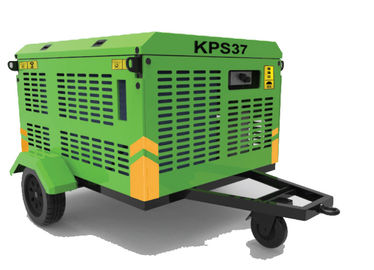

Hình ảnh lớn :  Electro Portable Hydraulic Power Pack Unit For Foundation Construction Equipment Motor power 37 KW

Thông tin chi tiết sản phẩm:

Nguồn gốc: Jiangsu, Trung Quốc
Hàng hiệu: TYSIM
Chứng nhận: CE ISO9001
Model Number: KPS37

Thanh toán:

Minimum Order Quantity: 1 set
Giá bán: Negotiation
Packaging Details: wooden packing, suitable for shipping (length*width*height=2700mm*2000mm*1700mm)
Delivery Time: 20 working days after received your payment
Supply Ability: 10 sets per month
Contact Now
Chi tiết sản phẩm
Working medium: 32# or 46# anti-wear hydraulic oil Fuel tank volume: 470 L
Max. operating pressure: 315 bar Motor power: 37 KW
Motor frequency: 50 Hz Motor voltage: 380 V
Motor working speed: 1460 rpm Working weight (full tank): 1500 kg
Wireless control distance: 200 m

KPS37 technical specifications
Service fluid 32#or46# anti-wear hydraulic oil
Capacity of tank 470L
Max. flow 240L/min
Max. Working pressure 315bar
Electrical machinery output 37KW
Electrical machinery frequency 50Hz
Electrical machinery electric pressure 380V
Electrical machinery speed of rotation 1460rpm
Working weight 1500kg





Performance

●Good tooling of civil construction, used with pile breaker perfectly, low cost;

●Intelligent design of changing from wired to wireless control easily;
●Through electric power driving pile breaker, more convenient;
●Technical improvement with variable adjustment of power output, high efficiency and environment
protection;
●International first-class air cooling makes motivation for a long time;
●Using high quality parts can be trustworthy.



Good performance:



1. Match pile breaker, provide hydraulic drive.

2. Wireless control.

3. Environment protection.

4. Air cooling, long time service.

5. Trustworthy quality parts.



Product Display:



Installation steps of hydraulic pile breaker and the pump station:



1. Put the pump station and pile breaker hang to the designated spot.

2. Use cable to put the external power connected with the pump station, make sure the indicator light without error.

3. Use hose to put the pile breaker connected with the pump station and install securely.

4. Through the observation mouth to check whether there is enough hydraulic oil in the fuel tank of the pump station.

5. Opening motor and operating the cylinder telescopic movements, making the hose and fuel tank full with oil.

6. Craning the pile breaker to cut piles.



Matches between pump station and hydraulic pile breaker:

Pump station model Round pile breaker model Square pile breaker model
KPS22 KP315A KP400S KP450S
KPS37 KP380A KP500S



Safety maintenance of the hydraulic pile breaker and the pump station:



1. Check the wear condition of drill rod regularly in order to change in time.

2. Check whether existing oil leaking of the cylinder and hydraulic parts.



Why Choose Us?

Supply professional customized service to meet all your requirements.We are the first manufacturer to design & manufacture pile breaker in China with over 4 years.

Competitive price.



FAQ:



Q1: What is the main usage of hydraulic pump station?

1. To match hydraulic pile breaker, for cutting square or round concrete.

2. To provide hydraulic drive, in construction site, in scientific research institution, and so on.

Electro Portable Hydraulic Power Pack Unit For Foundation Construction Equipment  Motor power 37 KW
