Thông tin chi tiết sản phẩm:
|Pile diameter:||600~1800mm||Max.rod pressure:||600kN|
|Crowd stroke:||180mm||Max. crowd pressure:||30MPa|
|Max. cylinder required:||30L/min||Quantity/8h:||32/8h|
|Max. single cutting height:||≤300mm||Single module weight:||230kg|
|Single module size:||696*566*350 mm||Type:||hydraulic pile breaker|

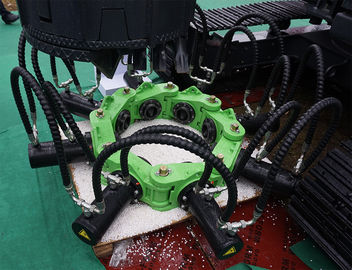

●The leading hydraulic pile breaker/cutter, with five patented technologies, is the most efficient
equipment to crushing the foundation piles and fills the domestic gap;
●Using advanced modular design, it can be used for crushing piles of different diameters by
changing the modular combination quantity;
●It can be installed on a large variety of construction machineries, realizing the versatility and economy.
|Technical specification KP380A (18 modules combination)|
|Max. cylinder stroke||150mm|
|Max. crowd pressure||30MPa|
|Max. single cylinder flow||30L/min|
|Max. single cutting height||≤300mm|
|Single module weight||230kg|
|Single module size||696×566×350 mm|
|Operating size||Φ3316×Φ4000 mm|
|KP380A construction parameters|
|Module numbers||The diameter range||Platform Weight||Weight||Height of single crush pile|
|8||Φ600 mm||≥20 t||2200 kg||≤300 mm|
|9||Φ700 mm||≥20 t||2430 kg||≤300 mm|
|10||Φ800~Φ900 mm||≥25 t||2660 kg||≤300 mm|
|11||Φ1000 mm||≥25 t||2890 kg||≤300 mm|
|12||Φ1100 mm||≥25 t||3120 kg||≤300 mm|
|13||Φ1200 mm||≥28 t||3350 kg||≤300mm|
|14||Φ1300~Φ1400 mm||≥28 t||3580 kg||≤300 mm|
|15||Φ1500 mm||≥30 t||3810 kg||≤300 mm|
|16||Φ1600 mm||≥30 t||4040 kg||≤300 mm|
|17||Φ1700 mm||≥35 t||4270 kg||≤300 mm|
|18||Φ1800 mm||≥35 t||4500 kg||≤300 mm|
1. Cylinder-----Chinese Largest Cylinder Factory Brand: SANY Cylinder
2. Module-----Steel Casing, which is stronger than iron welding
3. Drill Rod-----3-times Special Heat Treatment, which guarantees its strength & tenacity
1. Simply operated with less staff, reducing the construction cost.
2. Crushing the piles wholly, reducing the consumption of energy.
3. Using adjustable chain, the pile breaker/cutter can be applied to constructions in different terrains.
4. Full hydraulic drive, low noise operation.

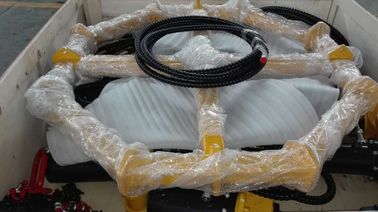

5. Quick assembled, more convenient to transport and more effciently.
6. Applying new material and new technology makes it much more reliable and reduces maintenance cost.
7. The design of simple changing modular and general technology can realize quick maintenance and extend the service life.
8. The design of long life can bring customers optimal benefits.

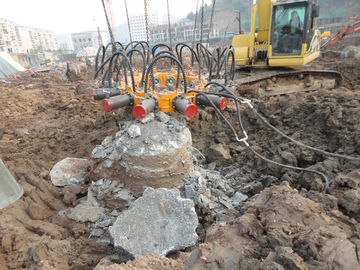

The operation steps of the pile
1. Make the pile breaker move to the place of the pile head.
2. Adjust the height of the pile breaker to the suitable cutting place (pleas refer to the construction parameter list, otherwise the chain may be broken), and clamp the pile posotion to be cut.
3. Adjust the excavator's systrm pressure according to the concrete strength, and pressurize the cylinder until the concrete pile is broken under high pressure.
4. After cutting the pile, hoist the concrete block.
5. Move the crushed pile to the designed position.
Why Choose Us?
1. We are the first factory to design & manufacture pile breaker in China with over 4 years.
2. We have the Patent for Invention of Hydrauilc Pile Breaker in China.
3. Our pile breakers have been sold to more than 20 countries, with good feedback.
4. Using best material, our pile breaker is the best quality
