Thông tin chi tiết sản phẩm:
|Pile diameter:||250~400mm||Max.rod pressure:||280kN|
|Crowd stroke:||135mm||Max. crowd pressure:||30MPa|
|Max. cylinder required:||20L/min||Quantity/8h:||100/8h|
|Max. single cutting height:||≤300mm||Overall weight:||0.6t|
|Type:||hydraulic pile breaker||color:||yellow or customized|

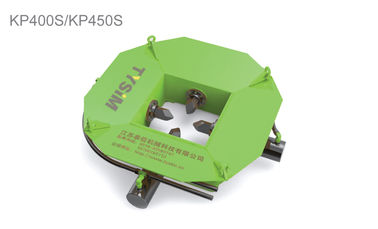

TYSIM Hydraulic Piling Rig KP400S
|Technical Specification of KP400S Hydraulic Pile Breaker|
|Max. rod pressure||280kN|
|Max. cylinder stroke||135mm|
|Max. crowd pressure||30MPa|
|Max. single cylinder flow||20L/min|
|Max. single cutting height||≤300mm|
1. Cylinder-----Chinese Largest Cylinder Factory Brand: SANY Cylinder
2. Module-----Steel Casing, which is stronger than iron welding
3. Drill Rod-----3-times Special Heat Treatment, which guarantees its strength & tenacity
1. The leading hydraulic pile breaker/cutter, with five patented technologies, is the most efficient equipment to crushing the fundation piles and fills the China gap.
2. Using advanced modular design, it can be used for crushing pile of different diameters by changing the module combination quantity.
3. It can be installed on a larege variety of construction machinery, realizing the versatility and economy.
The operation steps of the pile
1. Make the pile breaker move to the place of the pile head.
2. Adjust the height of the pile breaker to the suitable cutting place (pleas refer to the construction parameter list, otherwise the chain may be broken), and clamp the pile posotion to be cut.
3. Adjust the excavator's systrm pressure according to the concrete strength, and pressurize the cylinder until the concrete pile is broken under high pressure.
4. After cutting the pile, hoist the concrete block.
5. Move the crushed pile to the designed position.
Why Choose Us?
1. We are the first factory to design & manufacture pile breaker in China with over 4 years.
2. We have the Patent for Invention of Hydrauilc Pile Breaker in China.
3. Our pile breakers have been sold to more than 20 countries, with good feedback.
4. Using best material, our pile breaker is the best quality
TYSIM machinery focuses on the research,development and manufacture of the kind of the pile working enginerring machiney,it’s the unique company that focuses on developing small and medium-sized rotary drilling rig applying for civil enginerring,now have obtained more than 40 patents of pile working enginerring machiney.The original KP size Pile Breaker(also named break pile machine) of company in China,realize the efficiently pile cutting on a large scale,change the history that field of pile cutting inland rely on the workers and no professional equipments.This production obtained 11 core patents,among them 1 invention patent,they have been exported to Amercian,Brazil,Australia,Vietman,Indonesia and many other countries.
KR size small and medium-sized rotary drilling rig in many fields of metro,viaduct,houses win the praise of all the customers for the construction result,it will be the low cost and high efficient pile working equipments in operation field of our country’s new urbanizational construction. With the goal “be the reliable pile working proficient,fabricate the trade leading outstanding productions”,we recruit excellent talents constantly,create cause terrace for the win-win situation between staffs and company.We stick to the core concept“concentration,creative,value”concentrate on research and development in the pile basical construction field,rely on the working style of“pay attentions to details,keep improving,against the tardiness, finish daily duty”make great efforts to realize the vision of “become the pacemaker of small and medium-sized pile working machinery”.
