Thông tin chi tiết sản phẩm:
|
| Nguồn gốc: | Giang Tô, Trung Quốc (đại lục) | Loại hình: | Giàn khoan neo |
|---|---|---|---|
| Màu sắc: | Có thể được làm theo yêu cầu | Hàng hiệu: | tysim |
| Tên: | Máy khoan lắp bánh xích điện cho lỗ kỹ thuật nổ | ||
| Làm nổi bật: | Máy khoan lõi điện,Máy khoan lõi 20KN,Máy khoan lắp bánh xích |
||

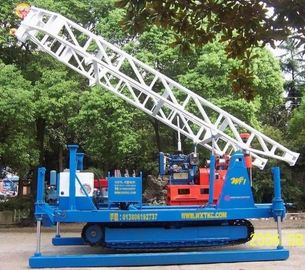

Electric Crawler Mounted Drill Rig For Blasting Engineering Hole
Quick Detail:
1. GXYL-1 drilling has large input power and output torque. Its drilling capacity is strong. Its capacity of dealing with accidents is good. It has an oil pressure feeding structure and its labour intensity is low.
2.The drilling rig has various chassis mode like skid mounted, crawler mounted.
3. The drill and the pump are transmitted separately, improving the output torque and avoiding the accidents in the hole.
4. Oening the clinostat, it is easy to lift and loose the drill.
Description:
1. GXYL-1 is a spindle type drill. It can be used in engineering geological exploration, survey and exploration of solid mineral deposit, blasting engineering hole, inspecting hole of various concrete stucture, etc.
2. According to various layer, it can be drilling with diamond bit, hard alloy bit, auger bit, etc.
3.The drilling rig has various chassis mode like skid mounted, crawler mounted.
4.The drill is convenient for maintenance and repair for simple structure and reasonable layout.
5. Opening the clinostat, it is easy to lift and loose the drill.
Applications:
1.Engineering geological exploration.
2. Survey and exploration of solid mineral deposit.
3.Blasting engineering hole.
4.Inspecting hole of various concrete stucture.
Specifications:
| Hole depth | 50m | Rod dia | 150mm |
| Hole depth | 150m | Rod dia | 76mm |
|
Hole angle(°) |
360° | ||
| Spindle speed | Forward speed:61;163;338;654rpm | ||
| Reverse speed:45rpm | |||
| Stroke of spindle | 500mm | ||
| Max .lifting capacity | 25KN | ||
| Max .feeding capacity | 20KN | ||
|
Max .distance from the spindle lower to the earth surface |
600mm | ||
| Hoist |
Max .lifting capacity (single line): |
15KN | |
| Lifting speed: | 0.2;0.52;1.05;2.06m/s | ||
| Power | Electric motor: | 11kw,2200rpm | |
| Diesel engine | S1100 or S1100M | ||
| Weight | 500kg | ||
| Dimensions (L×W×H) | 1450×970×1280mm | ||
