Thông tin chi tiết sản phẩm:
|
| tối đa. Độ sâu khoan: | 54m | mô-men xoắn: | 320 Kn.M |
|---|---|---|---|
| Max. tối đa. crowd pressure áp lực đám đông: | 230 triệu | Tốc độ quay: | 5 ~ 27 vòng/phút |
| Max. tối đa. drilling diameter đường kính khoan: | 2500 mm | tối đa. kéo đám đông: | 220 kN |
| Trọng lượng tổng thể: | 89 t | Dây kéo tời chính: | 320 kN |
| Tốc độ di chuyển: | 1,4km/giờ | Đột quỵ: | 6000mm |
| chiều cao hoạt động: | 22600mm | ||
| Làm nổi bật: | hydraulic piling rig with 320 kN.m torque,rotary piling rig for 54m drilling depth,piling rig machine with 2500mm diameter |
||

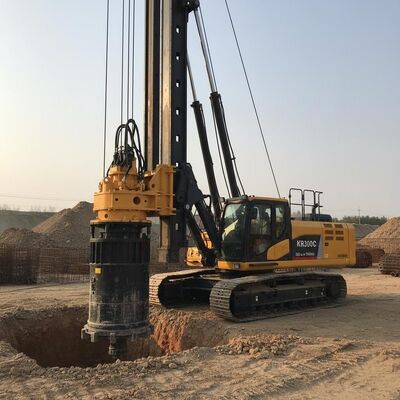

The KR300C Rotary Piling Rig is engineered for demanding deep foundation construction projects. Designed with advanced hydraulic technology and a powerful CAT engine, this rotary drilling machine provides high torque output, efficient drilling performance, and excellent operational stability.
This piling rig is widely used in highway bridges, railway infrastructure, urban metro systems, and large industrial foundations. With a drilling depth of 54 meters and a maximum drilling diameter of 2500mm, the KR300C can easily handle complex geological formations including hard rock and dense soil layers.
The KR300C hydraulic rotary drilling rig is equipped with a CAT C9 engine delivering 259kW power output. Combined with a high-performance hydraulic system, the rig achieves stronger crowd force and faster drilling speeds, significantly improving project efficiency.
The drilling rig integrates internationally recognized hydraulic brands:
These premium components ensure stable hydraulic pressure, improved durability, and smoother machine operation during long-term piling projects.
| Specification | Value |
|---|---|
| Max Drilling Depth | 54m |
| Max Diameter | 2500mm |
| Torque | 320kN.m |
| Rotation Speed | 5-27rpm |
| Main Winch Pull | 320kN |
| Travel Speed | 1.4km/h |
| Engine | CAT C9 |
| Total Weight | 89T |
The KR300C rotary drilling rig is ideal for:
The heavy-duty mast and reinforced chassis structure help the rig withstand high-intensity drilling conditions. The machine design reduces downtime while extending equipment lifespan, making it a preferred choice for professional piling contractors worldwide.
As a professional piling machinery manufacturer in China, TYSIM focuses on innovation, quality control, and practical engineering solutions. The company has earned strong market recognition for reliable rotary drilling rigs and foundation equipment.
The KR300C rotary drilling rig combines power, durability, and drilling efficiency, helping contractors complete deep foundation projects faster and more economically.
