Thông tin chi tiết sản phẩm:
|
| tối đa. Độ sâu khoan: | 54m | Max. tối đa. drilling diameter đường kính khoan: | 2500 mm |
|---|---|---|---|
| mô-men xoắn: | 320 Kn.M | Max. tối đa. crowd pressure áp lực đám đông: | 230 triệu |
| Tốc độ quay: | 5 ~ 27 vòng/phút | tối đa. kéo đám đông: | 220 kN |
| Trọng lượng tổng thể: | 89 t | Dây kéo tời chính: | 320 kN |
| Tốc độ di chuyển: | 1,4km/giờ | Đột quỵ: | 6000mm |
| chiều cao hoạt động: | 22600mm | ||
| Làm nổi bật: | hydraulic piling rig with 54m drilling depth,rotary drilling rig with 320kN.m torque,deep foundation piling rig 2500mm diameter |
||

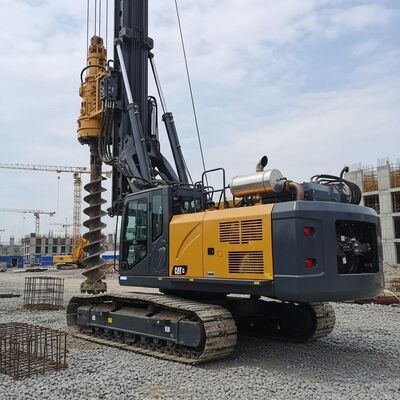

The KR300C Rotary Drilling Rig with CAT C9 Engine is a professional piling machine designed for demanding deep foundation engineering applications. Built with a reinforced CAT undercarriage and advanced hydraulic systems, this rotary drilling rig offers excellent drilling power, operational stability, and long service life.
With a maximum drilling depth of 54 meters and drilling diameter up to 2500mm, the KR300C is ideal for bridge foundations, commercial buildings, rail transit systems, and industrial infrastructure projects.
The KR300C piling rig is equipped with a high-torque rotary drive capable of delivering 320kN.m torque. The strong drilling capability allows efficient operation in dense clay, gravel, sand layers, and hard rock formations.
Powered by the CAT C9 diesel engine, the drilling rig delivers strong power output and excellent fuel economy for long-duration construction projects.
The engine system ensures smooth operation even in harsh construction environments.
The KR300C hydraulic rotary drilling machine uses premium imported hydraulic components:
This advanced configuration improves hydraulic response speed and enhances machine reliability.
| Parameter | Specification |
|---|---|
| Model | KR300C |
| Max Torque | 320kN.m |
| Max Drilling Diameter | 2500mm |
| Max Drilling Depth | 54m |
| Rotation Speed | 5-27rpm |
| Main Winch Pull | 320kN |
| Auxiliary Winch Pull | 110kN |
| Engine | CAT C9 |
| Operating Weight | 89T |
The KR300C rotary drilling rig is widely used in:
The heavy-duty mast structure and reinforced CAT chassis provide excellent stability during drilling operations. The durable design reduces machine vibration and improves drilling precision.
TYSIM specializes in foundation engineering machinery and has obtained more than 40 patents related to piling equipment technology.
