Thông tin chi tiết sản phẩm:
|
| tối đa. Độ sâu khoan: | 54m | Max. tối đa. drilling diameter đường kính khoan: | 2500 mm |
|---|---|---|---|
| mô-men xoắn: | 320 Kn.M | Max. tối đa. crowd pressure áp lực đám đông: | 230 triệu |
| Tốc độ quay: | 5 ~ 27 vòng/phút | tối đa. kéo đám đông: | 220 kN |
| Trọng lượng tổng thể: | 89 t | Dây kéo tời chính: | 320 kN |
| Tốc độ di chuyển: | 1,4km/giờ | Đột quỵ: | 6000mm |
| chiều cao hoạt động: | 22600mm | ||
| Làm nổi bật: | 54m deep rotary drilling rig,hydraulic piling rig with 320kN.m torque,bored pile construction drilling rig |
||

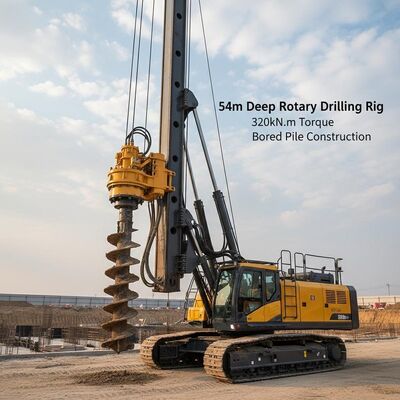

The 54m Deep Rotary Drilling Rig is a heavy-duty hydraulic drilling machine developed for deep pile foundation construction. Combining advanced hydraulic technology with a powerful CAT engine, the KR300C provides superior drilling performance for infrastructure, bridge, and commercial construction projects. The machine is engineered to deliver high productivity and reliable operation in difficult geological conditions.
The KR300C piling machine offers a maximum drilling depth of 54 meters and a maximum drilling diameter of 2500mm. The 320kN.m rotary torque allows efficient penetration through hard rock and compact soil layers.
The drilling rig is powered by a CAT C9 diesel engine with 259kW rated power output. The engine delivers strong power performance and excellent fuel efficiency, supporting long working hours on construction sites.
To ensure reliable operation, the KR300C adopts imported hydraulic components including:
These components improve hydraulic efficiency and reduce machine failure rates.
| Item | Parameter |
|---|---|
| Model | KR300C |
| Torque | 320kN.m |
| Max Drilling Diameter | 2500mm |
| Max Drilling Depth | 54m |
| Rotation Speed | 5-27rpm |
| Engine | CAT C9 |
| Engine Power | 259kW |
| Operating Weight | 89 Tons |
The strong torque and hydraulic system significantly improve drilling speed and reduce project completion time.
The reinforced structure and imported components provide stable long-term performance under heavy-duty working conditions.
The CAT undercarriage design allows easy access to spare parts and simplifies maintenance procedures.
TYSIM focuses on the development and manufacturing of piling machinery and foundation engineering equipment. The company has earned strong customer recognition for product quality, competitive pricing, and professional technical support.
