Thông tin chi tiết sản phẩm:
|
| tối đa. Độ sâu khoan: | 54m | Max. tối đa. drilling diameter đường kính khoan: | 2500 mm |
|---|---|---|---|
| mô-men xoắn: | 320 Kn.M | Max. tối đa. crowd pressure áp lực đám đông: | 230 triệu |
| Tốc độ quay: | 5 ~ 27 vòng/phút | tối đa. kéo đám đông: | 220 kN |
| Trọng lượng tổng thể: | 89 t | Dây kéo tời chính: | 320 kN |
| Tốc độ di chuyển: | 1,4km/giờ | Đột quỵ: | 6000mm |
| chiều cao hoạt động: | 22600mm | ||
| Làm nổi bật: | Hydraulic Rotary Drilling Rig 54m depth,Hydraulic Piling Rig 320kN.m torque,Large Scale Drilling Rig 2500mm diameter |
||

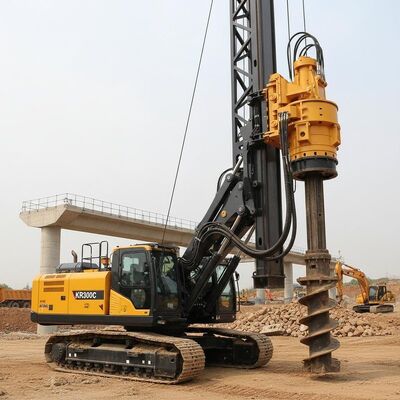

The KR300C Hydraulic Rotary Drilling Rig is engineered for large-scale infrastructure and foundation engineering projects. With a maximum drilling depth of 54m and drilling diameter of 2500mm, this heavy-duty piling rig delivers stable performance, high efficiency, and exceptional durability in demanding construction environments.
Powered by a CAT C9 engine and equipped with imported hydraulic systems, the KR300C is ideal for bridge foundations, railway construction, urban metro systems, and industrial building projects.
The KR300C rotary piling rig features a powerful rotary drive capable of producing 320kN.m torque. This robust drilling power enables efficient operation in hard rock, dense clay, gravel, and overburden conditions.
The machine incorporates high-quality hydraulic parts from internationally recognized brands, ensuring stable performance and extended equipment lifespan.
The advanced hydraulic system enhances drilling precision while reducing maintenance costs.
| Specification | Details |
|---|---|
| Model | KR300C |
| Max Torque | 320kN.m |
| Drilling Diameter | 2500mm |
| Drilling Depth | 54m |
| Main Winch Pull | 320kN |
| Auxiliary Winch Pull | 110kN |
| Engine Model | CAT C9 |
| Engine Power | 259kW |
| Total Weight | 89T |
The KR300C hydraulic drilling rig is widely used for:
The reinforced CAT undercarriage provides excellent stability and mobility on rough construction sites. The robust structural design supports long-term heavy-duty drilling operations while minimizing equipment downtime.
TYSIM is a professional Chinese manufacturer specializing in pile foundation machinery. The company focuses on innovative engineering solutions and reliable equipment performance.
